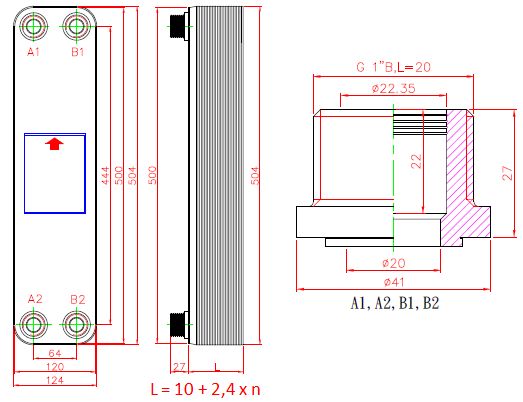

Modell: EWT-N4-60 |
||
 |
||
| Standard connectors | 4 x 1" male (DIN 259 / ISO 228 - G) | |
| Area per plate | 0.0533 m2 | |
| Maximum flow (water) | 20 m3/h | |
| Plate material |
1.4401, AISI 316L |
|
| Braze material | nickel | |
| Plate thickness | 0.4 mm |
|
| Volume per chamber | 0.107 dm³ | |
| Max. number of plates | 120 | |
| Design pressure | 1.0 MPa | |
| Test pressure | 1.5 MPa | |
| Temperature range | +200°C | |
